Benchtop scales M-ER 222 F-32.5 "Connect" LCD USB and RS-232

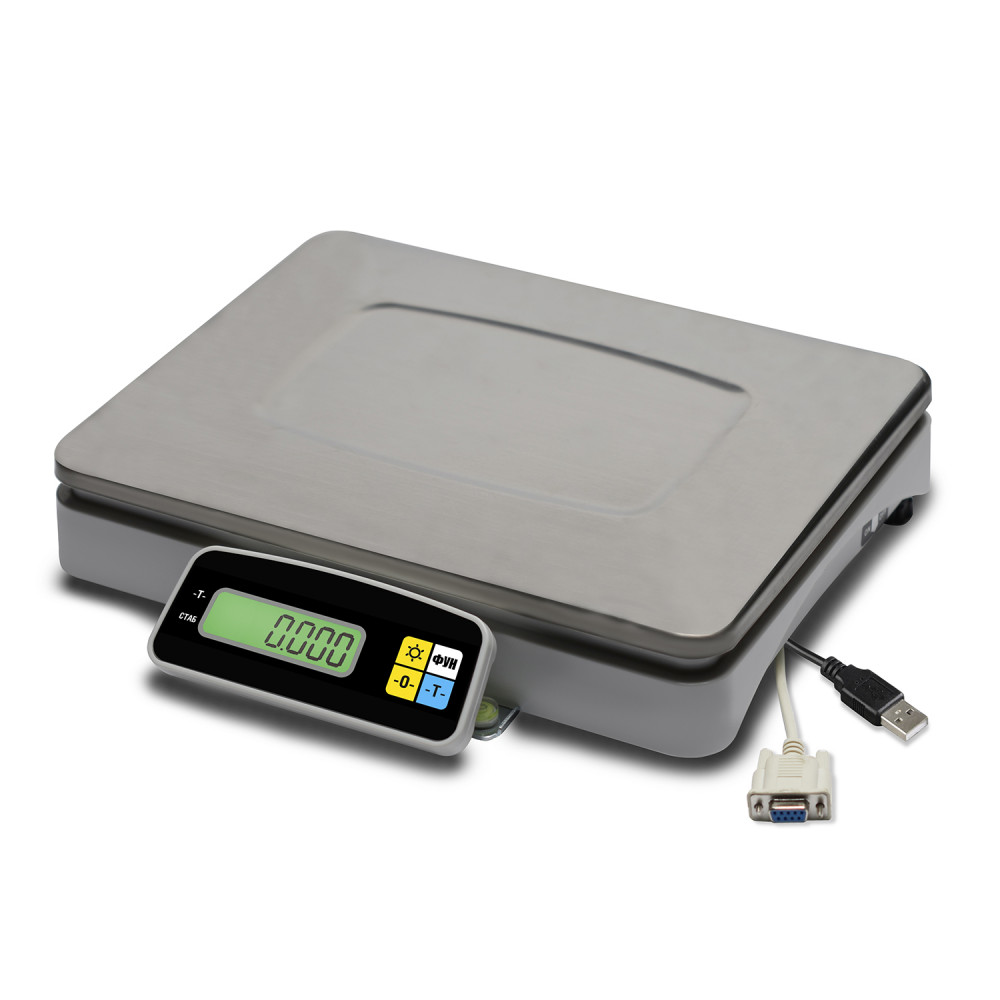

The M-ER 222 F-32.5 "Connect" LCD USB and RS-232 scales feature an ultra-thin platform. This model can be integrated into cash desks or boxes by removing the display. The design includes two interfaces for connecting to a POS system: RS-232 and USB-COM. The weighing results are displayed on a removable LCD monitor (with backlight).

Design Features

The 222 F "Connect" model is distinguished by its compact dimensions. The body size is 330*320*80 mm, while the load platform size is 330*255 mm. It is one of the thinnest models available on the market. The catalog presents two variants of the model, differing in technical specifications:

1. M-ER 222 F-15.2. Maximum load – 15 kg. Minimum – 40 g. Division price – 2 g.
2. M-ER 222 F-32.5. Maximum load – 32 kg. Minimum – 100 g. Division price – 5 g.

The accuracy class of weighing is III (for trade). The declared characteristics are confirmed by state calibration. The model operates using the CAS-M protocol. In addition to simple weighing, a tare weight subtraction mode is available.

Built-in scales save space on the cashier's desk and speed up customer service. The weighing results are transmitted to the POS computer and added to the cash receipt. The cashier only needs to specify the type of product, while all other operations are performed automatically.

Connection and Setup

A flat and vibration-free surface is suitable for installation. To ensure accurate measurements, the platform should be installed horizontally. The position of the load platform can be adjusted using vertical supports.

Connection to the POS computer is made via RS-232 and USB-COM. Cables are included in the package. Synchronization with most online cash registers and smart terminals occurs with the help of free drivers. We guarantee compatibility with equipment from Mercury, Evotor, Atol, MTS, Shtrikh, and other brands.

The M-ER 222 F-32.5 "Connect" LCD USB and RS-232 operates from the electrical network. After the scales are installed and connected, an LCD screen check will begin. When the readings equal "0," the device will be ready for operation. The stabilization indicator will turn on automatically.

Place an Order

You can purchase the M-ER 222F "Connect" trading scales at a price directly from the manufacturer. We sell weighing equipment without a markup. Delivery of orders is carried out in Astana and across Kazakhstan. Free consultations for buyers on the installation, connection, and setup of the scales are available. To purchase weighing equipment, please leave a request on the website.
