| Scale typePackaging | Discreteness5 gr | Minimum weight100 gr |
| Number of keys4 | Weighing limit32 kg | Platform size300*200 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |

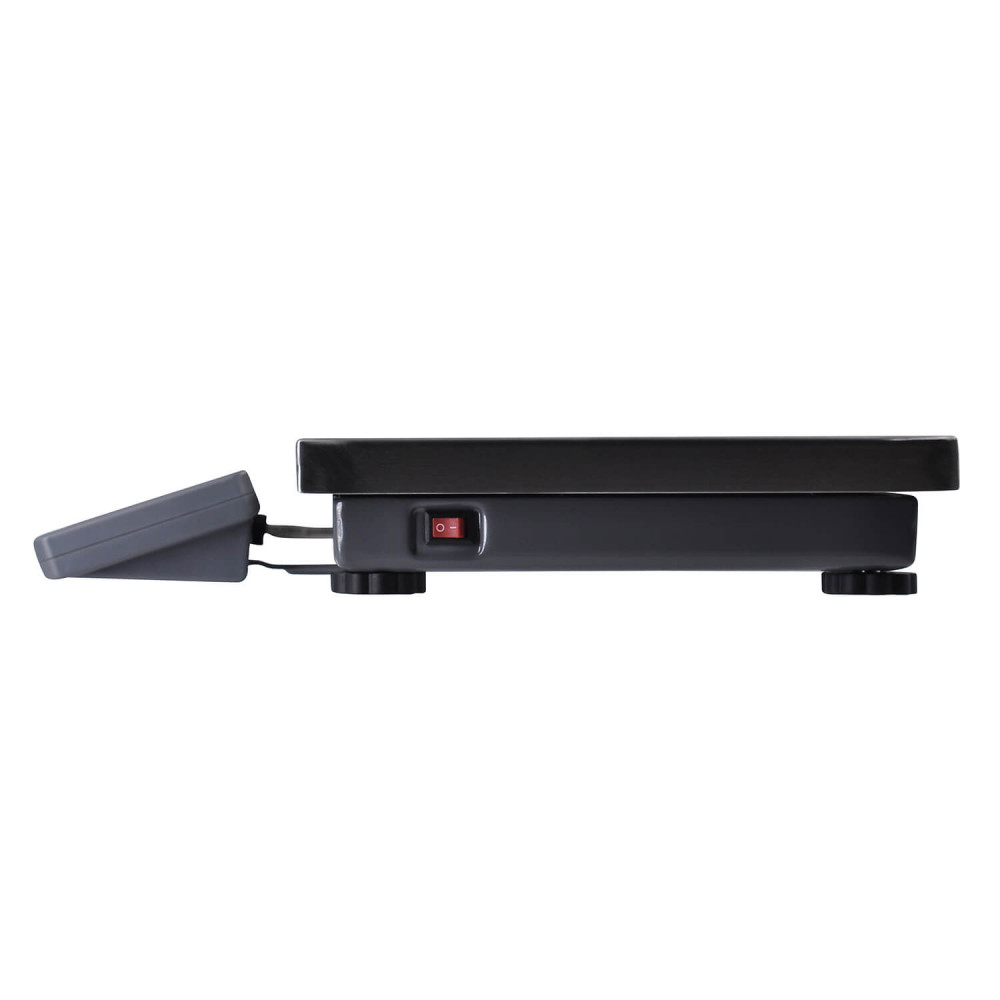

The electronic scales M-ER 224 AFU-32.5 STEEL LCD USB with a weighing platform area of 300*200 mm do not take up much space on the desk. They can be used in places where there is limited space for installing equipment. The model is suitable for weighing any goods and can be used for check weighing. The body has a battery for autonomous operation. The battery can be charged via a USB connector.
Advantages of the Model
The tabletop scales are suitable for weighing retail and wholesale batches weighing up to 32 kg. The division price is 5 grams. The parameters of the model meet Class III accuracy according to GOST, which is confirmed by a calibration certificate. The device is suitable for use in warehouses, factories, shop sales floors, cafes, or restaurants.
What are the advantages of this model:
- choice of measurement units: kilograms or pounds;
- data transfer protocols POS2-M and CAS-M (Passive);
- sensitive load cell with 7,000 divisions;
- overload protection system;
- double galvanization of steel parts.
The device supports 2 basic modes, simple weighing or mass fixation, as well as a self-diagnosis function. The work process is accompanied by audio and visual indications. It does not require much time to train staff to work with the scales.
Design Characteristics
The tabletop scales have a display located on the control panel, which is attached to the platform. The panel with 4 buttons is completely sealed, allowing it to be operated with wet hands. The LCD display contains 5 digits of indication measuring 8*21 mm.
The design is based on a rigid metal frame. The body panels are made of plastic and metal. The weighing platform is made of stainless steel. The housing is protected against impacts, water, and dust ingress.
Autonomous operation is provided by a high-capacity battery. The set includes a USB COM cable for charging the device.
On the MERTECH company website, you can buy the tabletop scales at the lowest price. Delivery is carried out to any point in Kazakhstan.
| Scale type | Packaging |
|---|---|
| Discreteness | 5 gr |
| Minimum weight | 100 gr |
| Number of keys | 4 |
| Weighing limit | 32 kg |
| Platform size | 300*200 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | Optional |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 300*280*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 3.15 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
