| Scale typePackaging | Discreteness5 gr | Minimum weight100 gr |
| Number of keys4 | Weighing limit32 kg | Platform size325*275 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |

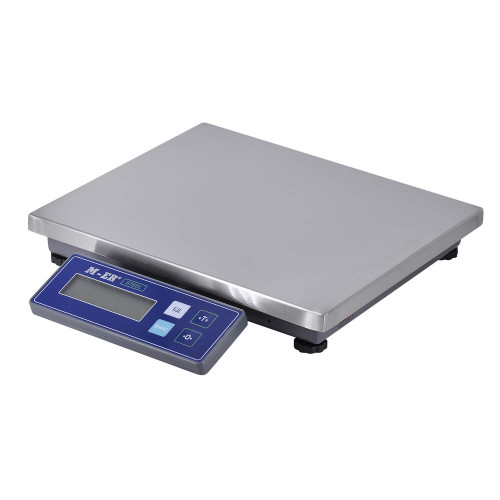

Packaging scales model M-ER 224 F-32.5 STEEL LCD USB without a battery operate only from the mains. They are suitable for use in rooms where there is a stable electricity supply. The refusal to install a battery helps reduce the weight of the device and lower the price. The scales can be used for packing products in a warehouse, at a factory, or in a store for control weighing.
Model Advantages
The tabletop model is designed for weighing goods with a weight of up to 32 kg. The division price during operation is 5 grams. The model belongs to class III of accuracy according to GOST based on the declared characteristics. The accuracy of measurements is confirmed by a calibration certificate.
Advantages of the packaging model:
- compliance with CAS-M (Passive) and POS2-M protocols;
- switching between kilograms and pounds;
- sensitive load cell with 7,000 divisions;
- reliable protection against short-term overloads;
- double galvanization of steel parts.
The control menu supports two basic programs: simple weighing and weight fixation. Light and sound signals help monitor the working process. The device has a self-diagnostic system.
Construction Characteristics

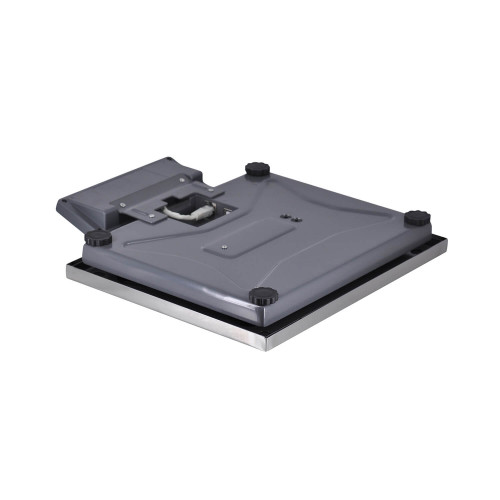

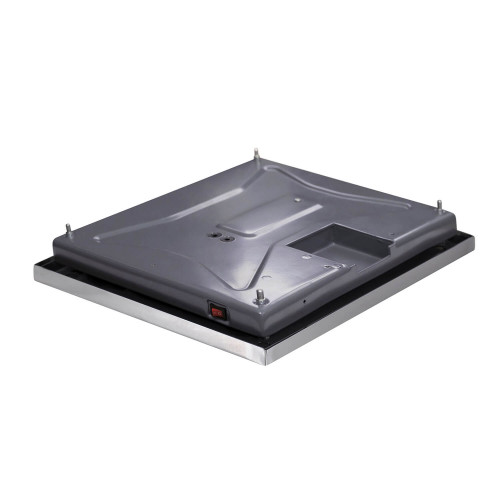

The device is based on a strong and stable metal frame. The body assembly is carried out using metal and plastic panels, while the weighing platform is made of stainless steel. The platform measuring 325*275 mm can weigh large batches of products. Protection against impacts, moisture, and dust increases the service life of the device.
The LCD screen is located on the control panel of the body. The display provides 5 digits of indication of size 8*21 mm. The control button panel is made airtight, allowing buttons to be pressed with wet hands. The user interface consists of 4 buttons, making it very easy to master all the functions of the device. The electronic scales are powered via a USB COM cable.
You can order tabletop packaging scales on the MERTECH website. When placing an order through the manufacturer’s website, the lowest price is available. Delivery of orders is carried out throughout Kazakhstan.
| Scale type | Packaging |
|---|---|
| Discreteness | 5 gr |
| Minimum weight | 100 gr |
| Number of keys | 4 |
| Weighing limit | 32 kg |
| Platform size | 325*275 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | No |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 325*350*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 4.75 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
