| Scale typePackaging | Discreteness2 gr | Minimum weight40 gr |
| Number of keys4 | Weighing limit15 kg | Platform size300*200 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |

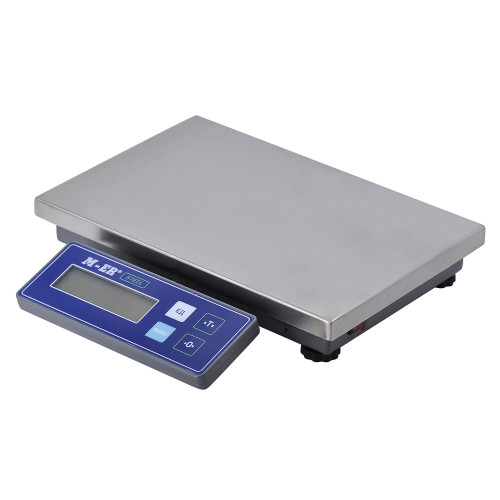

The M-ER 224 FU-15.2 STEEL LCD USB scale without a battery is used for weighing goods. The weighing equipment can only operate from a power outlet, with power supplied via a USB COM cable. The absence of a battery reduces the weight and lowers the cost of the device.
Advantages of the Model
The weighing equipment is suitable for weighing products with a mass of up to 15 kg. The division price is 2 grams. The weighing model complies with class III accuracy according to GOST. Each device undergoes calibration. The package includes a certificate confirming the specified parameters.
The device is suitable for production, warehouses, or stores with a stable power connection. The body has a weighing platform with a reduced area.
Advantages of the weighing model:
- Data exchange protocols CAS-M (Passive) and POS2-M;
- Weighing in kilograms or pounds;
- Enhanced load cell with 7,000 units;
- Reliable overload protection system.
The equipment can weigh products in normal mode or with mass fixation. Visual and sound effects simplify the operator's work. The firmware includes a self-diagnosis algorithm.
Construction Characteristics

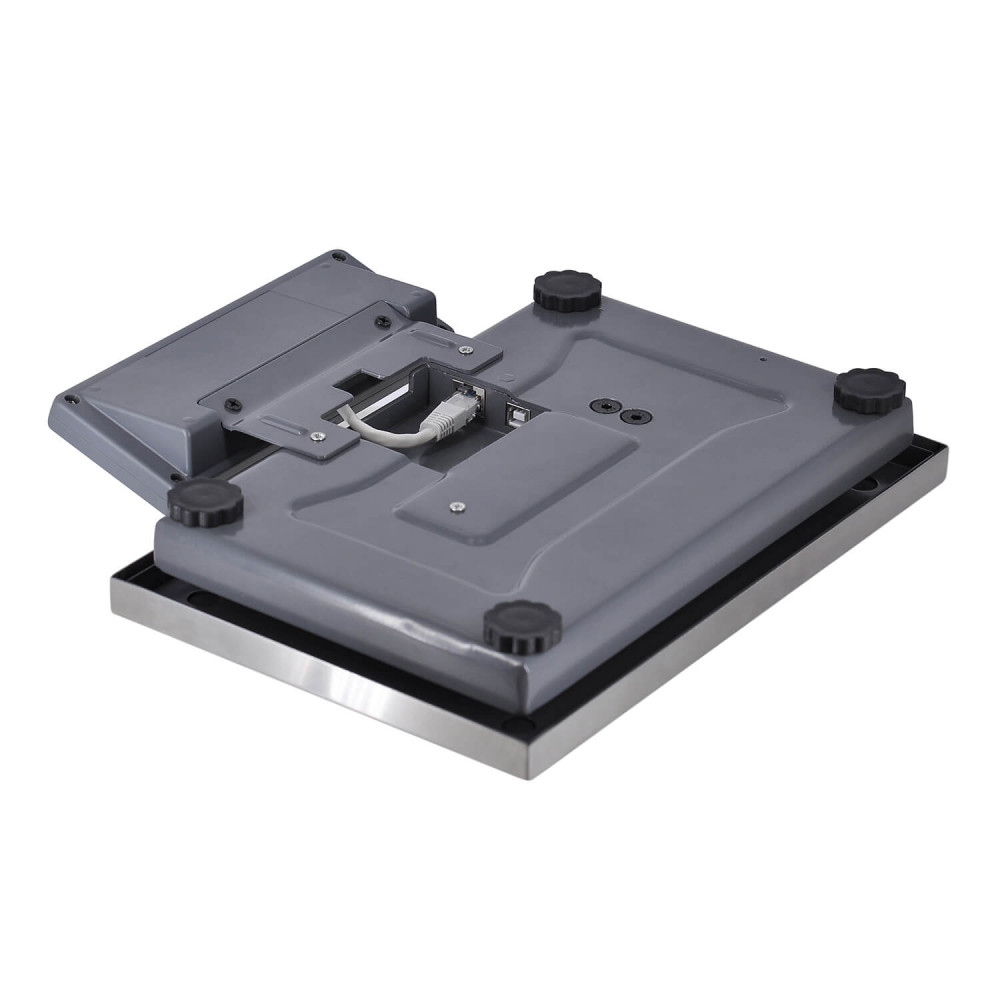

The construction is based on a sturdy metal frame. The device body is made of plastic and metal. The weighing platform is entirely made of stainless steel. The scale's design is protected against accidental water and dust ingress, as well as from strong impacts.
The M-ER 224 FU-15.2 STEEL model features a reduced platform size of 300*200 mm. A large table is not needed for installation. The equipment can be placed in a limited space.
The body features a sealed control panel. The electronic scales can be operated using 4 buttons. The control panel has an LCD screen with 5 digits of indication.
You can purchase electronic scales on the MERTECH website. The lowest prices from the manufacturer are available for online purchases. Equipment delivery is carried out throughout Kazakhstan.
| Scale type | Packaging |
|---|---|
| Discreteness | 2 gr |
| Minimum weight | 40 gr |
| Number of keys | 4 |
| Weighing limit | 15 kg |
| Platform size | 300*200 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | No |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 300*280*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 3.15 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
