Scale typePackaging | Discreteness5 gr | Minimum weight100 gr |
Weighing limit32 kg | Platform size255*210 mm | ExecutionTabletop |
VerificationYes | Accuracy classAverage (III) | Load cells, pcs.1 |

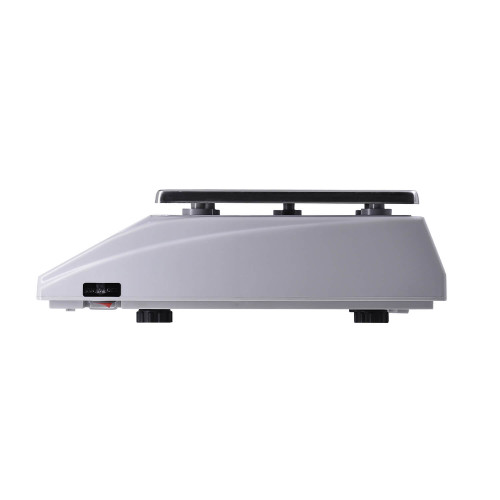

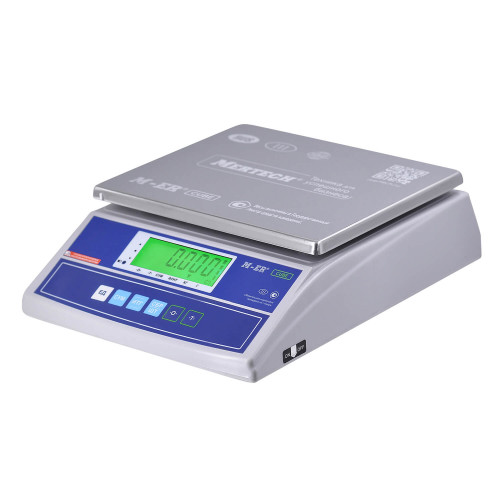

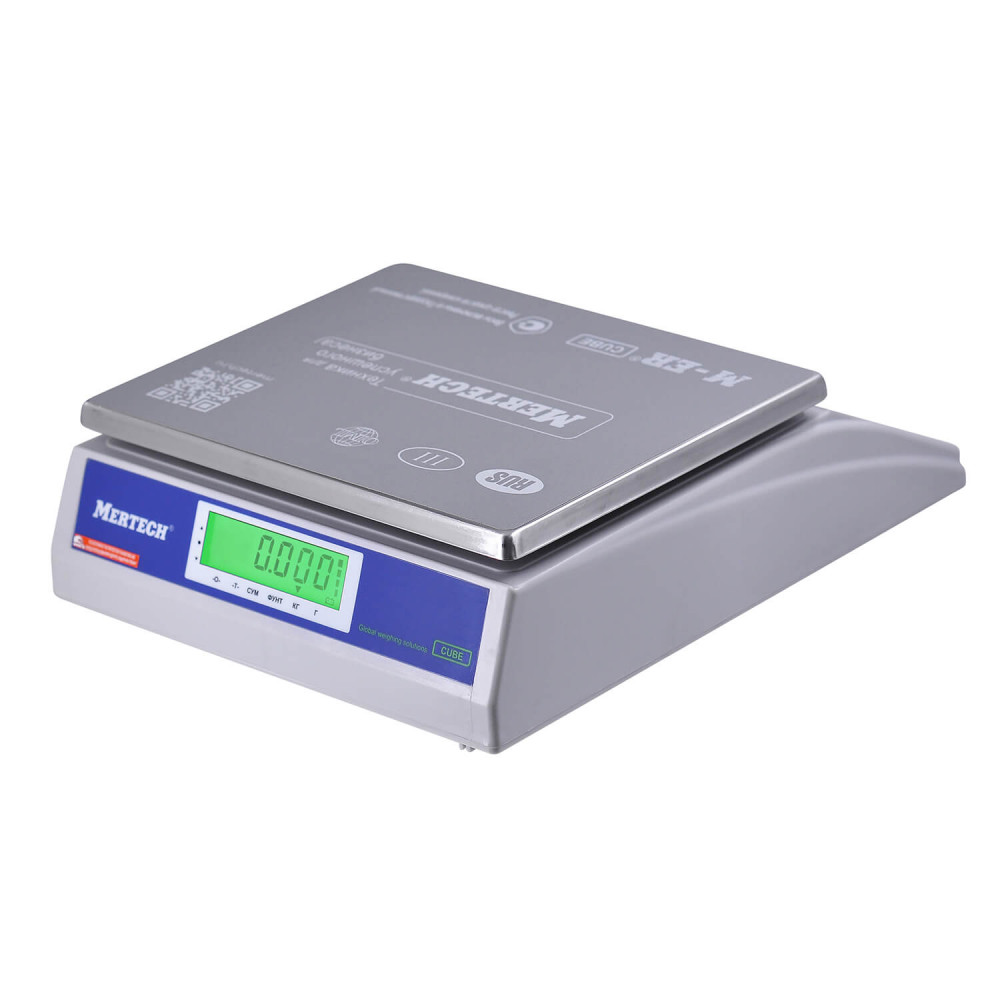

The M-ER 326 AF scale features two LCD displays so that measurement results are visible not only to the seller but also to the customer. It can weigh goods with a mass of up to 32 kg. Please note: the model's design does not include ports for connecting to a cash register. The seller must manually input values for calculating the price of the product.
Advantages of the Model
The M-ER 326 AF-6.1 "Cube" is a dosing model, which is not suitable for cash register operation. It does not calculate product prices and does not transmit data to the cash register. Entrepreneurs often use them for packaging products (such as tea, fruits, berries, groceries, etc.).
The device supports the following modes:
- simple weighing;
- calculation of total results;
- tare weight subtraction;
- comparator program;
- counting of items.
The series has become popular due to the high accuracy of the equipment. The new model has been added to the state register of measuring instruments. The scale package includes a certificate of calibration of the device.
Specifications
The desktop device has a sturdy, stable housing. The frame and panels are made of durable plastic. The platform measures 255 by 210 mm and is made of stainless steel. The metal parts have undergone galvanization to combat corrosion. The platform can weigh frozen meat, fish, and other wet products.
Measurement range:
- maximum: 32 kg;
- increment: 5 g;
- minimum: 100 g.
The quality of the load cell ensures measurement accuracy. It is protected against brief overloads that exceed the maximum measurement limit by three times. The device's housing is equipped with a button keyboard with a membrane.
Each of the two LCD screens displays up to 6 characters. The standard size of the digits is 8 x 21 mm. The device does not have a battery; it operates only when connected to the mains. The design of the housing provides convenience for the employee and for the customer, who can observe the weighing process.
The dosing scales can be used at temperatures of at least -10°C. Products can be packaged in unheated rooms. The package includes a dust and moisture-resistant cover. The warranty for the weighing equipment is valid for 2 years. You can place an order at the lowest price on the MERTECH company's website.
Scale type | Packaging |
---|---|
Discreteness | 5 gr |
Minimum weight | 100 gr |
Weighing limit | 32 kg |
Platform size | 255*210 mm |
Execution | Tabletop |
Verification | Yes |
Accuracy class | Average (III) |
Load cells, pcs. | 1 |
Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode |
---|---|
Tare sampling range | The whole range |
Units of measurement | Gr; kg; ft |
Self-diagnosis mode | Yes |
Visual indication | Yes |
Level | Yes |
Guarantee | 2 years |
---|---|
Applications of scales | For connection to 1C, For a store, For hardware, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
Nutrition | 5.8V - 0.5A |
Permissible humidity | 85% |
Atmospheric pressure | 630...800 mm Hg |
Operating temperature | -10°C ~ +40°C |
Display type | LCD |
---|---|
Number of displays | 2 |
Number of indication digits | 6 |
Character size, mm | 8*21 |
Interfaces | No |
---|
Overall dimensions (WxDxH), mm | 260*325*120 |
---|---|
Platform material | Stainless steel |
Body material | Plastic |
Weight | 2.9 kg |
Keyboard type | Membrane |
Overload protection | Sound and visual notification |
Corrosion protection | Galvanization |
Moisture protection | Dust and moisture-proof cover |
Adjustable supports | Yes |
-
