Scale typeTrading | Discreteness5 gr | Minimum weight100 gr |
Weighing limit32 kg | Platform size325*230 mm | ExecutionTabletop |
VerificationYes | Accuracy classAverage (III) | Load cells, pcs.1 |

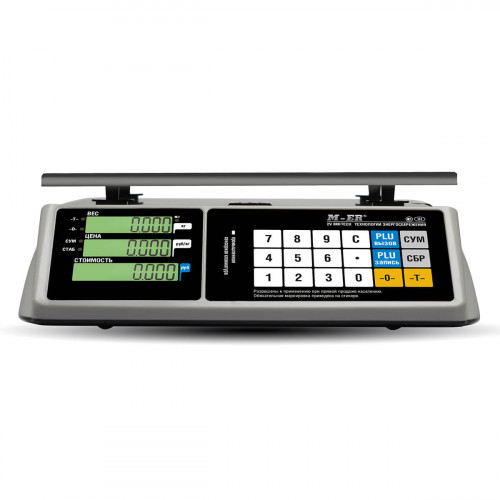

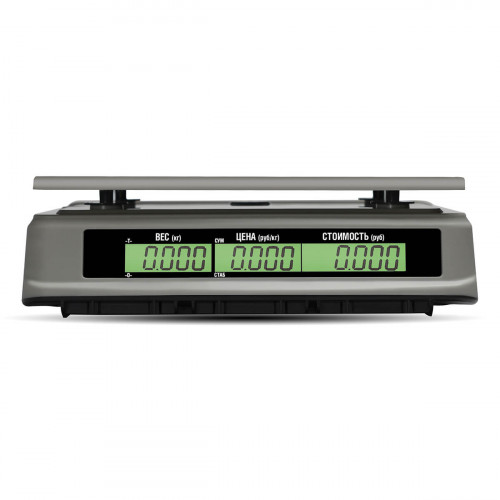

The M-ER 328 AC-32.5 "TOUCH-M" LCD bench scales are used for weighing products and calculating the cost of a batch. The design features two LCD screens so that the results are visible to both the seller and the buyer. The device operates autonomously. This basic version does not include connectivity to a PC, online cash register, or POS system.
Design Features
The device's body is made from reliable materials: ABS+PC. The construction is protected from moisture and dust, as well as mechanical deformation. The metal elements of the body are coated with galvanization twice. The dimensions of the device are 350*345*120 mm. The platform size is 325*230 mm. Color: white.
The letter A in the name indicates operation from a battery. The letter C denotes the counting mode in the control menu. The number 2 indicates the type of construction: bench scales. An industrial sensor is used for information input.
Operating modes of the device:
- Simple weighing.
- Summation of totals.
- Counting (piece counting).
- Tare (subtracting the weight of the container).
- Programmed prices.
The device has 2 modifications with different measurement ranges. Maximum limit: 32 kg. Minimum: 100 g. Discretization: 5 g. Each LCD display has 16 indicators.
Advantages of this Model
The electronic scales M-ER 328 AC "TOUCH-M" are included in the State Register of Measuring Instruments. All devices undergo mandatory verification.
Distinctive characteristics of the model:
- 10 cells of built-in memory are provided.
- The load cell operates at temperatures from +5°C to +40°C.
- There is protection against fivefold overload of the platform.
- Visual and sound indication during overloads.
- The battery can operate for 4 months on a single charge.
- The battery can be charged from a 220 V power supply.
- Polyethylene film to protect the body from dust and moisture.
The device is used in stores, in catering establishments, at industrial enterprises, and at markets and fairs. The warranty for the scales is 2 years (the standard period for other companies is 1 year).
Place an Order
You can purchase the M-ER 328 AC trading scales on the MERTECH website. As the largest dealer of the company in Kazakhstan, we sell equipment at low prices. Delivery of weighing equipment is available to residents of Moscow and any regions of Kazakhstan. Leave a request with just a couple of clicks or call us to place an order.
Scale type | Trading |
---|---|
Discreteness | 5 gr |
Minimum weight | 100 gr |
Weighing limit | 32 kg |
Platform size | 325*230 mm |
Execution | Tabletop |
Verification | Yes |
Accuracy class | Average (III) |
Load cells, pcs. | 1 |
Operating modes | Simple weighing; Summation mode; Working with programmed prices; Calculating change; Counting mode; Accounting for tare weight |
---|---|
Sound and visual indication | Yes |
Printing labels | No |
Changing the stabilization speed | Yes |
Energy saving mode | Yes |
Programmable memory | 10 price memory cells |
Calibration | Yes |
Tare sampling range | The whole range |
Units of measurement | Kg |
Self-diagnosis mode | Yes |
Level | Yes |
Guarantee | 2 years |
---|---|
Applications of scales | For the store, For hardware, For food production, For meat, For confectionery, Construction, For bulk materials, For food products |
Battery | 4.5A*4.5V |
Verification | Yes |
Nutrition | 5.6V |
Permissible humidity | 80% |
Atmospheric pressure | 630...800 mm Hg |
Operating temperature | +5…+40 |
Display type | LCD |
---|---|
Number of displays | 2 |
Number of indication digits | 16 |
Character size, mm | 15*9 |
Interfaces | No |
---|
Color | White |
---|---|
Overall dimensions (WxDxH), mm | 350*345*120 |
Platform material | metal |
Body material | Plastic |
Weight | 2.7 kg |
Keyboard type | Industrial sensor |
Overload protection | Sound and visual notification |
Corrosion protection | Galvanization |
Moisture protection | Dust and moisture-proof cover |
Rack | No |
Adjustable supports | Yes |
-
