| Gross weight5,333 kg | Masterbox dimensions43.5x39x34.8 cm | Masterbox weight, kg22.2 kg |
| Package dimensions (1 pc.)42x37.8x8 cm | Software compatibilitySetRetail10, Artix, Aitida, Kassir-5, Shtrik Kassir-5, GBS Market, Dancy Cash Register, Service+, IIKO, Bifit, 1C, R-Keeper, Mercury-ERP, Triar, Contour Market | VerificationYes |
| Weighing limit15 kg | Scale typePacking rooms | Discreteness2 grams |

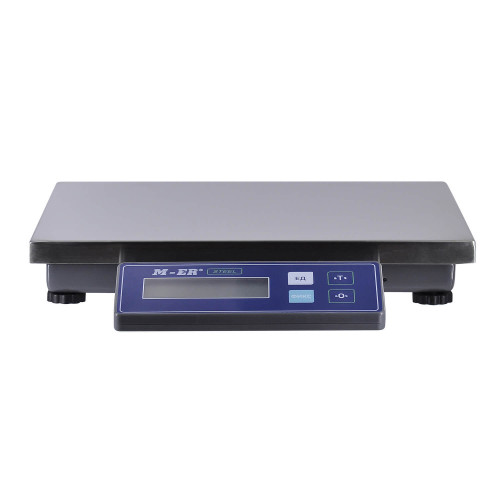

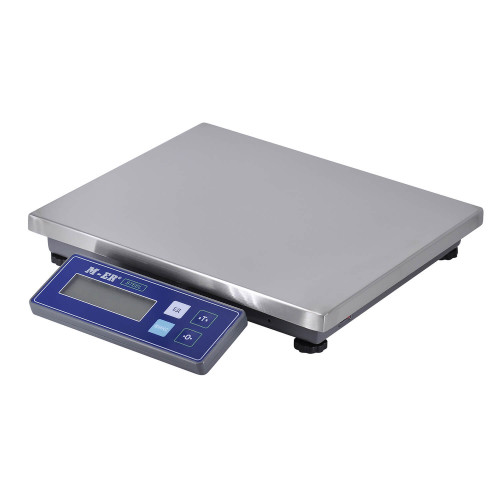

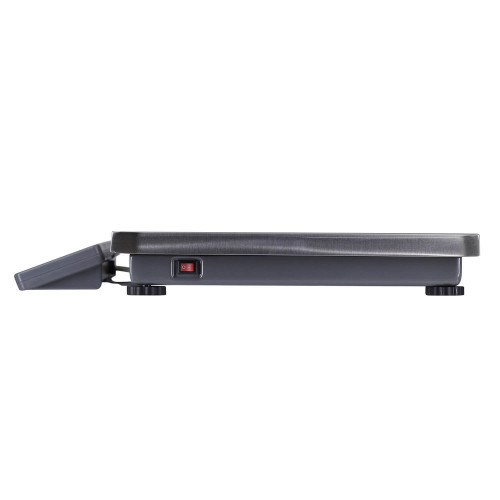

The M-ER 224 AF-15.2 STEEL LCD USB table scales are designed for packing goods in a warehouse or in a store. The maximum weighing limit is 15 kg. The size of the weighing platform is standard. The design is equipped with an LCD display. The device can be powered by a battery. A USB cable is used to connect to the cash register and recharge the battery.
Advantages of the model
Weighing equipment belongs to the III accuracy class according to GOST. The model is suitable for all products and non-food items. Each device undergoes factory verification, which confirms the certificate.
Advantages of weighing equipment:
- measurements in kilograms or pounds;
- CAS-M (Passive) and POS2-M protocols;
- improved strain gauge for 7,500 divisions;
- resistance to short-term overload;
- double galvanization of steel parts.
The menu has 2 modes: simple weighing and weight fixing. The weighing process is accompanied by a sound and light indication. The minimum step is 2 grams. The device has a self-diagnosis mode.
Design features

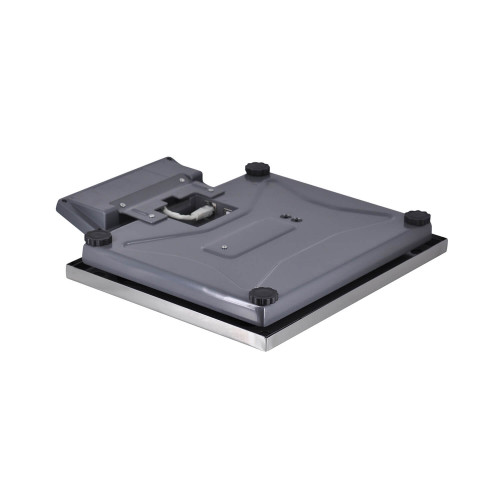

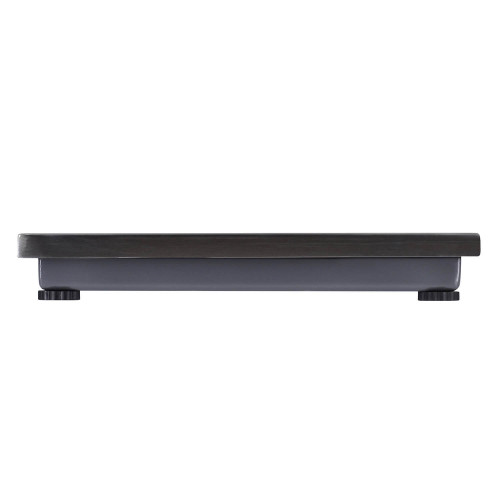

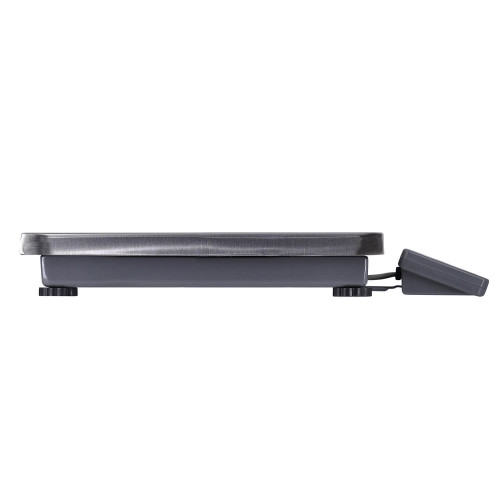

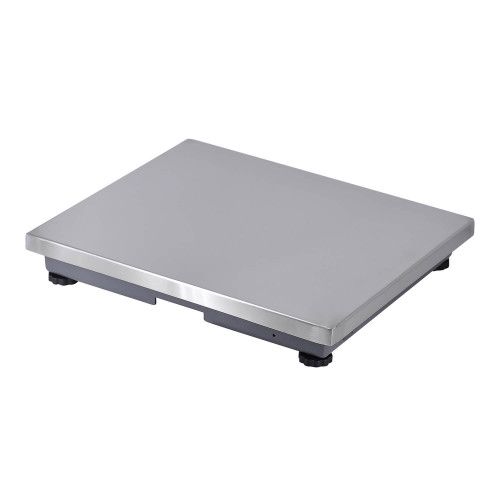

The M-ER 224 AF-15.2 STEEL is a classic table scale with a platform. The case is made of metal and plastic. The 325*275 mm platform is completely metal. The robust housing protects electronic components from shocks, water and dust. Metal panels are reliably protected from corrosion.
A simple keyboard with 4 buttons is used for control. The control panel is sealed. The LCD screen shows the weighing results. The display has 5 digits of indication with a character height of 8*21 mm.

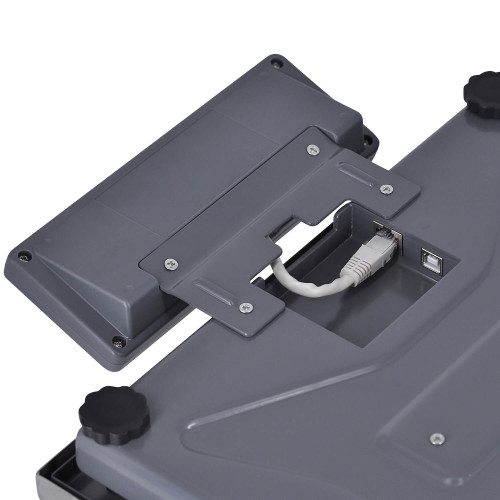

The device has an energy-intensive battery. The device consumes battery power extremely slowly. A USB(COM) cable for charging the battery is included.
You can order electronic scales at a low price on the official MERTECH website. The equipment is delivered across Russia.
| Gross weight | 5,333 kg |
|---|---|
| Masterbox dimensions | 43.5x39x34.8 cm |
| Masterbox weight, kg | 22.2 kg |
| Package dimensions (1 pc.) | 42x37.8x8 cm |
| Software compatibility | SetRetail10, Artix, Aitida, Kassir-5, Shtrik Kassir-5, GBS Market, Dancy Cash Register, Service+, IIKO, Bifit, 1C, R-Keeper, Mercury-ERP, Triar, Contour Market |
| Verification | Yes |
| Weighing limit | 15 kg |
| Scale type | Packing rooms |
|---|---|
| Discreteness | 2 grams |
| Minimum weight | 40 g |
| Number of keys | 4 |
| Weighing limit | 15 kg |
| Platform size | 325*275 |
| Execution | Desktop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Desktop |
| Operating modes | Weighing mode; Weight fixation mode; Audio and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Lb |
| Level | Yes |
| Battery | Optional |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40 °C, without condensation of moisture |
| Atmospheric pressure | 630...800 mmHg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB(type-b) |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 325*350*46 |
| Platform material | Metal |
| Body material | Metal; plastic |
| Weight | 4.75 kg |
| Keyboard type | Push button |
| Overload protection | Audio and visual alerts |
| Moisture protection | Sealing the control panel |
| Quantity in masterbox, pcs | 4 pcs |
|---|---|
| Equipment | Scales, Warranty card, User Manual, USB(COM) Type A - Type B cable, length 1.8 m |
-
