| Gross weight2.417 kg | Masterbox dimensions64.5x31x33.2 cm | Masterbox weight, kg12.8 kg |
| Package dimensions (1 pc.)32x29.5x12.5 cm | VerificationYes | Weighing limit3 kg |
| Scale typePacking, Portioned | Discreteness0.1 g | Minimum weight5 grams |
This product is currently under redesign. The product's appearance, including color, may differ slightly from those shown in the photo. The discrepancy between the appearance of the real product and the photos on the website is not an indicator of poor product quality.

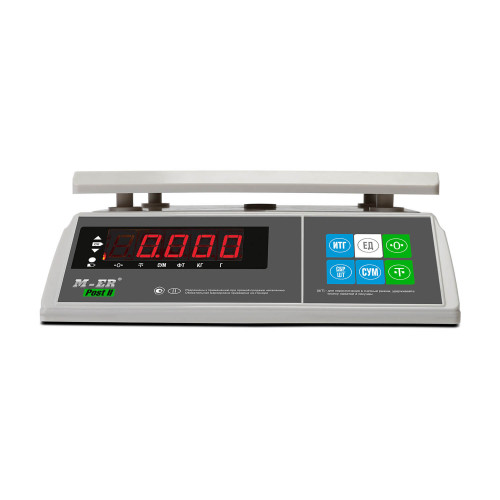

The M-ER 326 AFU-3.01 "Post II" LED table scales have a II accuracy class according to GOST. They can be used not only for packing goods, but also as laboratory scales. The model is suitable for scientific research, pharmaceutical companies, jewelry salons and workshops. This modification differs in the design of the display. An LED screen is installed to display the results.
Design features
There are several modifications of the M-ER 326 AFU in the catalog. On this page there are scales with a maximum weighing limit of 3 kg. Minimum weight limit: 5 grams. Division price: 0.1 gr.
The model is small in size. It doesn't take up much free space on the table. Body dimensions: 265*290*110 mm. Platform size: 255*205. Device weight: 2.5 kg.
Several operating modes are available:
- Simple weighing;
- Comparator mode;
- Summation mode;
- The result of weighing;
- Tare weight accounting;
The results are displayed on the LED display. There are 6 digits of indication. A membrane keyboard is installed to control the scales.
Advantages of the model
The main advantage of the M-ER 326 AFU-3.01 "Post II" LED is improved metrological characteristics. Accuracy class II is confirmed by state verification. There is a certificate of successful completion of the tests.
Let's list other advantages of the model:
- Intuitive interface.
- The choice of units of measurement: grams, kilograms, pounds.
- Increased size of characters on the display: 9*21 mm or 11*21 mm.
- Adjustable height of the supports.
The body and platform are made of durable plastic. The kit includes a dust film to protect against dust. The device is powered by a network. A power adapter is used for charging.
Place an order
You can buy scales M-ER 326 AFU-3.01 "Post II" LED at the manufacturer's price. We are an official MERTECH dealer and sell equipment without a trade mark-up. All modifications of the M-ER 326 AFU are in stock. Delivery is carried out in Moscow or Russia. We guarantee accurate and fast delivery of goods.
| Gross weight | 2.417 kg |
|---|---|
| Masterbox dimensions | 64.5x31x33.2 cm |
| Masterbox weight, kg | 12.8 kg |
| Package dimensions (1 pc.) | 32x29.5x12.5 cm |
| Verification | Yes |
| Weighing limit | 3 kg |
| Scale type | Packing, Portioned |
|---|---|
| Discreteness | 0.1 g |
| Minimum weight | 5 grams |
| Number of keys | 6 |
| Weighing limit | 3 kg |
| Platform size | 255x205 |
| Execution | Desktop |
| Verification | Yes |
| Accuracy class | High (II) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode |
|---|---|
| Printing labels | No |
| Changing the stabilization speed | Yes |
| Energy saving mode | Yes |
| Calibration | External |
| Tare sampling range | The whole range |
| Units of measurement | G; kg; ft; Oz (optional) |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years old |
|---|---|
| Applications of scales | For the store, For hardware, For EVOTOR, For food production, For meat, For confectionery, For bulk materials, For food, For catering |
| Battery | 4V-4.5A |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 80% at a temperature of 40 ° C without condensation of moisture |
| Atmospheric pressure | 630...800 mmHg (84...106.7 kPa) |
| Operating temperature | +10...+40 |
| Display type | LED |
|---|---|
| Character size | 11*20 |
| Number of indication digits | 6 |
| Character size, mm | 9*21; 11*21 |
| Interface | No |
|---|---|
| Interfaces | No |
| Weight with platform | 2.11 kg |
|---|---|
| Overall dimensions (WxDxH), mm | 265*290*110 |
| Platform material | Plastic |
| Body material | Plastic |
| Weight | 2.5 kg |
| Keyboard type | Membrane |
| Overload protection | Audio and visual alerts |
| Corrosion protection | Galvanization |
| Moisture protection | Dust film |
| Adjustable supports | Yes |
| Quantity in masterbox, pcs | 5 pcs |
|---|---|
| Equipment | Power adapter, Platform, Dust cover, Warranty card, User manual |
-
