| Gross weight15.4 kg | Masterbox dimensions67x40x43 cm | Masterbox weight, kg15.404 kg |
| Package dimensions (1 pc.)67x40x43 cm | Software compatibilityArtix, Triar, SetRetail10, 1C, RUN 2010, Astor, Aitida, Trading Company 7, Vlsi, Domino, S-Market DataCrat, 1C Rarus TK 3 TK 8, FIT, MicroInvest, Mercury-ERP, CloudShop, GBS Market | VerificationYes |
| Weighing limit32 kg | Scale typeTrading scales, Scales with label printing, Scales with recognition | ROM memory8GB |

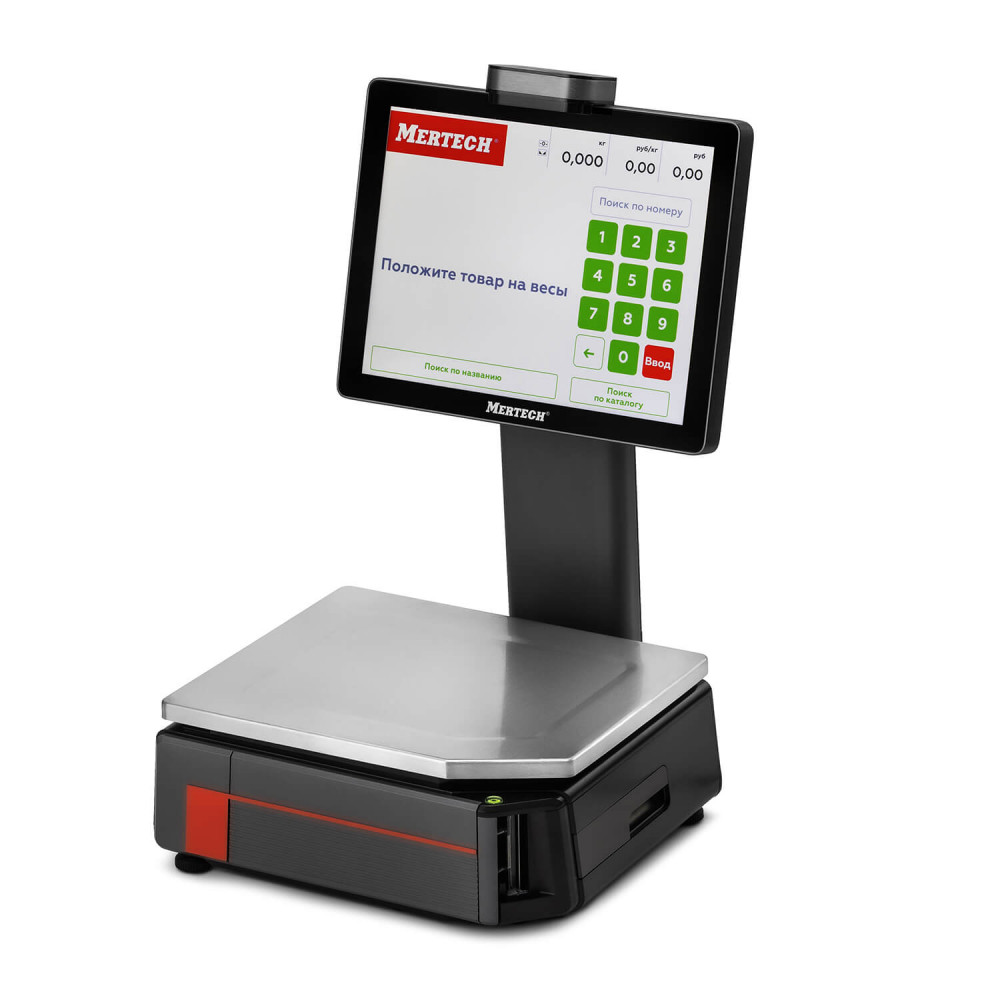

The innovative scales M-ER 727 PM-32.5 are equipped with a VISION-AI computer vision system and a label printer. You can use them to organize a self-service area in the store and to pack goods before sale.
Advantages of the model
Automatic recognition makes weighing as simple as possible. The buyer does not need to search for the product in the catalog, the intelligent scale offers 2-3 options. After selecting a position, the label is printed. The recognition system is trained during operation.
Distinctive features of the model:
- Recognition accuracy up to 99%
- Recognition takes 2 seconds.
- A 7500-division sensitive load cell.
- Touch-screen TFT display with a diagonal of 15 inches.
- The rugged screen can withstand 50 million taps.
- Thermal printing speed up to 120 mm/sec.
- Cassette-free technology for replacing the label tape.
- USB, Ethernet or Wi-Fi connection is available.
The scales run on unique software developed by MERTECH. It implements tools for flexible interface configuration and operational scenarios. The software is based on Android 6.0 OS. The basic functions include support for the Barcode-Print protocol.
Technical specifications
The model is suitable for retail or small wholesale. The maximum weighing limit is 32 kg. The load cell can withstand short overloads 3 times higher than the maximum limit. The minimum load it reacts to is 100 grams. The division price is 5 gr.
The design is distinguished by a thoughtful and ergonomic arrangement of nodes. In the M-ER 727 PM-32.5 model, the printer is located under the platform. This solution makes the case more stable. All structural elements are made of sturdy materials: metal, plastic and polycarbonate. Metal parts are double electroplated to protect against corrosion.
The built-in printer uses thermal printing technology. It prints at a resolution of up to 203 DPI. The width of the working area is up to 54 mm, and the length is up to 90 mm. The print template can be easily customized to suit the specifics of the store. The finished labels come off with a minimum of effort.
Buy self-service scales
You can buy a smart scale with a label printer on the MERTECH website. Prices from the manufacturer are available when placing an order. A profitable discount system is provided for wholesale customers. The delivery of weighing equipment is carried out in Russia. To place an order, leave a request on the website, and a consultant will contact you.
| Gross weight | 15.4 kg |
|---|---|
| Masterbox dimensions | 67x40x43 cm |
| Masterbox weight, kg | 15.404 kg |
| Package dimensions (1 pc.) | 67x40x43 cm |
| Software compatibility | Artix, Triar, SetRetail10, 1C, RUN 2010, Astor, Aitida, Trading Company 7, Vlsi, Domino, S-Market DataCrat, 1C Rarus TK 3 TK 8, FIT, MicroInvest, Mercury-ERP, CloudShop, GBS Market |
| Verification | Yes |
| Weighing limit | 32 kg |
| Scale type | Trading scales, Scales with label printing, Scales with recognition |
|---|---|
| ROM memory | 8GB |
| Discreteness | 5 grams |
| Minimum weight | 100 g |
| Weighing limit | 32 kg |
| Platform size | 355x295 mm |
| Print speed | from 60 to 120 mm/sec |
| Print type | Thermo |
| operating system | Android 6.0 |
| Print area width, mm | 56 mm |
| Print head resource | 50 km |
| Print Resolution | 203dpi |
| Support of the HQ | EAN 8, EAH13, EAN13+5, EAN128, UPC A, UPC E, ITF, CODE 39, CODE 93, CODE 128, DATA MATRIX, QR code, GS1 DATABAR EXPANDED, GS1 DATABAR EXPANDED STACKED |
| RAM memory | 1GB |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Maximum label length | from 30 to 200 mm |
| Refilling the tape | Lateral |
| Printing mechanism protection | No removable printer covers that may be lost during operation. |
| Printing on various label formats | Yes |
| Number of touch screen presses | at least 50 million |
| Peel-off force of printed label | no more than 50 grams |
| Actuation force when pressing the screen | not more than 50 grams |
| Support for working with gloves | Yes |
| Cutter | No |
|---|---|
| Data transfer protocol | Mertech |
| Operating modes | Automatic recognition, Weighing mode, Packing mode, Visual product search, Product code search, Product Name search, Label printing |
| Sound and visual indication | Yes |
| Tare sampling range | The whole range |
| Units of measurement | kg |
| Self-diagnosis mode | Yes |
| Level | Yes |
| Instant local recognition | in 200 milliseconds |
|---|---|
| Recognition accuracy | up to 99% |
| Guarantee | 2 years old |
|---|---|
| Power supply type | Internal |
| power unit | Internal |
| No fan | Yes |
| Nutrition | 220V, 50Hz |
| Permissible humidity | up to 85%, at a temperature of 40 ° C, without condensation of moisture |
| Atmospheric pressure | 630...800 mmHg |
| Operating temperature | -10°C ~ +40°C |
| Roll core diameter | 42 mm |
|---|---|
| Printing material | sticky thermal label |
| Display type | TFT Touch Screen |
|---|---|
| Diagonal | 15 |
| Number of displays | 1 |
| Permission | 1024x768 |
| Overall dimensions with stand (WxLxH), mm | 370x440x590 |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 370x440x625 |
| Platform material | Stainless steel |
| Body material | Metal, Plastic |
| Weight | 13.3 kg |
| Overload protection | Audio and visual alerts |
| Corrosion protection | Powder coating |
| Rack | Yes |
| Rack type | Not collapsible |
| Quantity in masterbox, pcs | 1 PC |
|---|---|

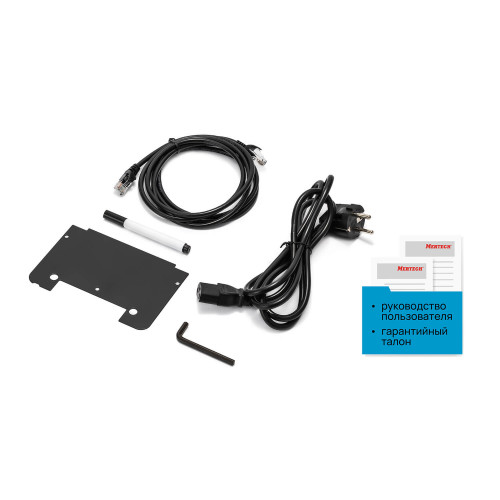

| Equipment | Power cord, length 1.8 m, Hex key, Platform, Warranty card, Instruction manual |
-
