| Gross weight0.423 kg | Masterbox dimensions61.5x43x30.5 cm | Masterbox weight, kg9.519 kg |
| Package dimensions (1 pc.)20x14x12 cm | Scanning speed100 scans/sec | Type of scanning module2D image |
| Scanner typeStationary | Scanning element2D image | Connection typeWired |

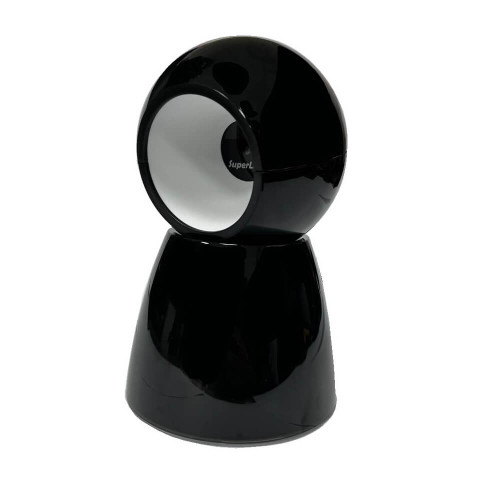

The MERTECH 9010 P2D is a stationary 2D scanner with a modern body design. It is suitable for working with a wide range of products. The model is designed for shops, supermarkets and hypermarkets with a large flow of visitors. The warranty for the equipment is valid for 3 years.
Advantages
The MERTECH 9010 P2D stationary scanner quickly recognizes all common barcode formats, including EAN, DataMatrix, PDF417 and QR. The device is suitable for scanning Honest MARK product labeling codes and EGAIS excise stamps.
The patented Superlead technology ensures high recognition speed. The device reads barcodes of non-standard size and poorly printed labels. The photo scanner has a wide angle of coverage, it recognizes labels the first time.
The model has a bright red LED backlight of 617 nm. High-quality illumination ensures that codes are read from complex surfaces. Recognition is accompanied by a light and sound signal, and a clear indication speeds up the work of the checkout operator.
Technical specifications
Characteristics of the stationary scanner:
- Reading speed: 100 scans/sec.
- Camera coverage angle: 53 ° x 41 °.
- Scanning distance: up to 150 mm.
- The minimum barcode contrast is 20%, with a resolution of 4 MIL.
- Interfaces: USB-HID, USB-COM emulation.
The device with a case size of 150x102x102 mm does not take up much space on the desktop. The body panels are made of sturdy materials: plastic and polycarbonate. Commercial equipment is characterized by high-quality assembly. The device works stably at room temperature and humidity.
You can buy MERTECH 9010 P2D stationary barcode scanners on the official MERTECH website at the lowest prices. We provide fast delivery of equipment across Russia and help with the connection of equipment. To place an order, leave a request on the website.
| Gross weight | 0.423 kg |
|---|---|
| Masterbox dimensions | 61.5x43x30.5 cm |
| Masterbox weight, kg | 9.519 kg |
| Package dimensions (1 pc.) | 20x14x12 cm |
| Scanning speed | 100 scans/sec |
| Type of scanning module | 2D image |
| Scanner type | Stationary |
|---|---|
| Scanning element | 2D image |
| Connection type | Wired |
| Scanner resolution | 640(H)x480(V)Px |
| Scanning coverage angle | 53º(h)x41º(v) |
| Barcode Sensitivity | Tilt ± 65° / 360° Rotation / Deviation ± 60 ° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | 150 mm |
| Sound and visual indication | Yes |
|---|---|
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| EGAIS support | Yes |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | red, 617nm LED |
|---|
| 5 MIL | 0-30 mm |
|---|---|
| 13 MIL | 0-120 mm |
| Minimum scanning resolution | 4 MIL |
| Guarantee | 3 years old |
|---|---|
| Resistance to external influences | IP54 |
| Storage temperature | -40°C ~ +70°C |
| Nutrition | 5V/400mA |
| Permissible humidity | 0% ~ 95% |
| Application areas | For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, Medical |
| Operating temperature | 0°C ~ +50°C |
| Drop test | It can withstand 3 falls from a height of 0.5 m. |
| Interface | USB-HID, USB-COM emulation |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 150mm*102mm*102 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 272 grams |
| Quantity in masterbox, pcs | 20 pcs |
|---|---|
| Gross weight, g | 515 |
| Box dimensions, mm | 195*120*140 |
| Equipment | Scanner, USB type A cable (140 cm), Instructions, Warranty card, Packaging |
-
