| Gross weight0.277 kg | Masterbox dimensions53x42x45 cm | Masterbox weight, kg15.104 kg |
| Package dimensions (1 pc.)21.5x7.5x10 cm | Scanning speed100 scans/sec | Type of scanning module2D image |
| Scanner typeManual | Scanning element2D image | Connection typeWired |

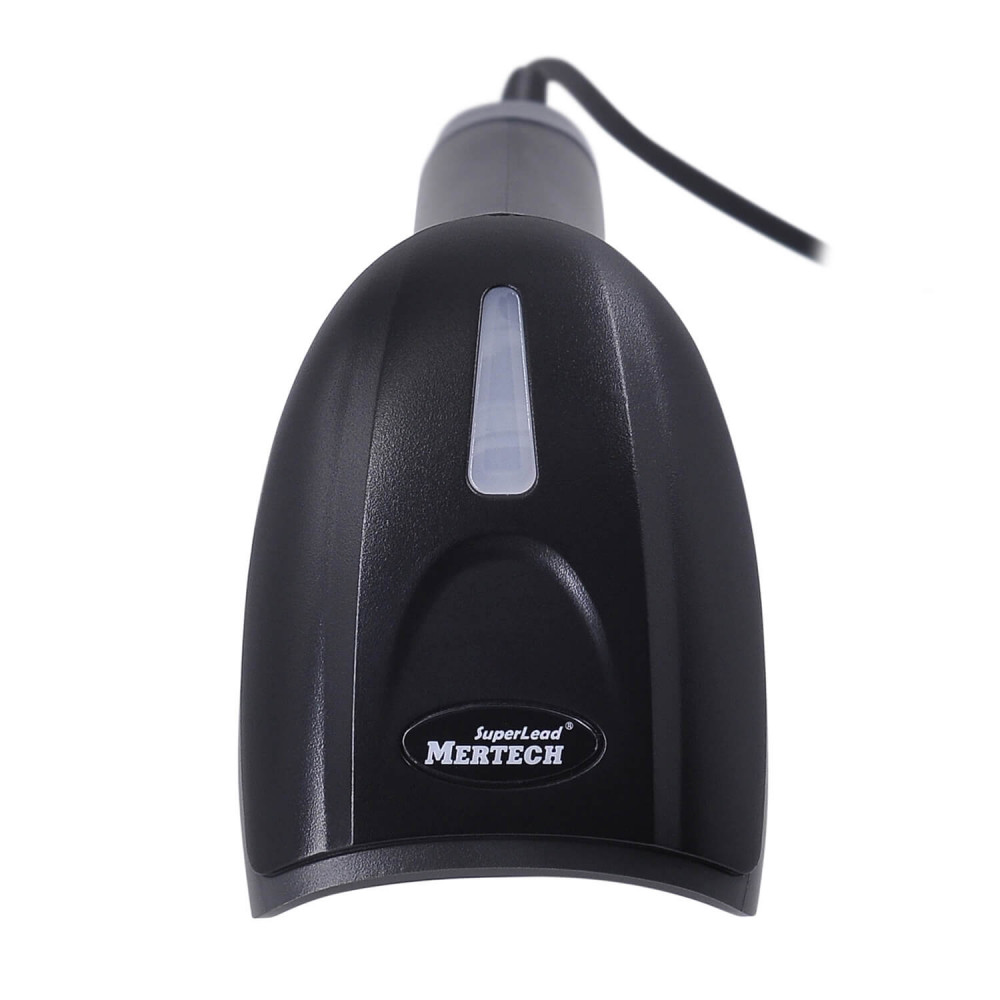

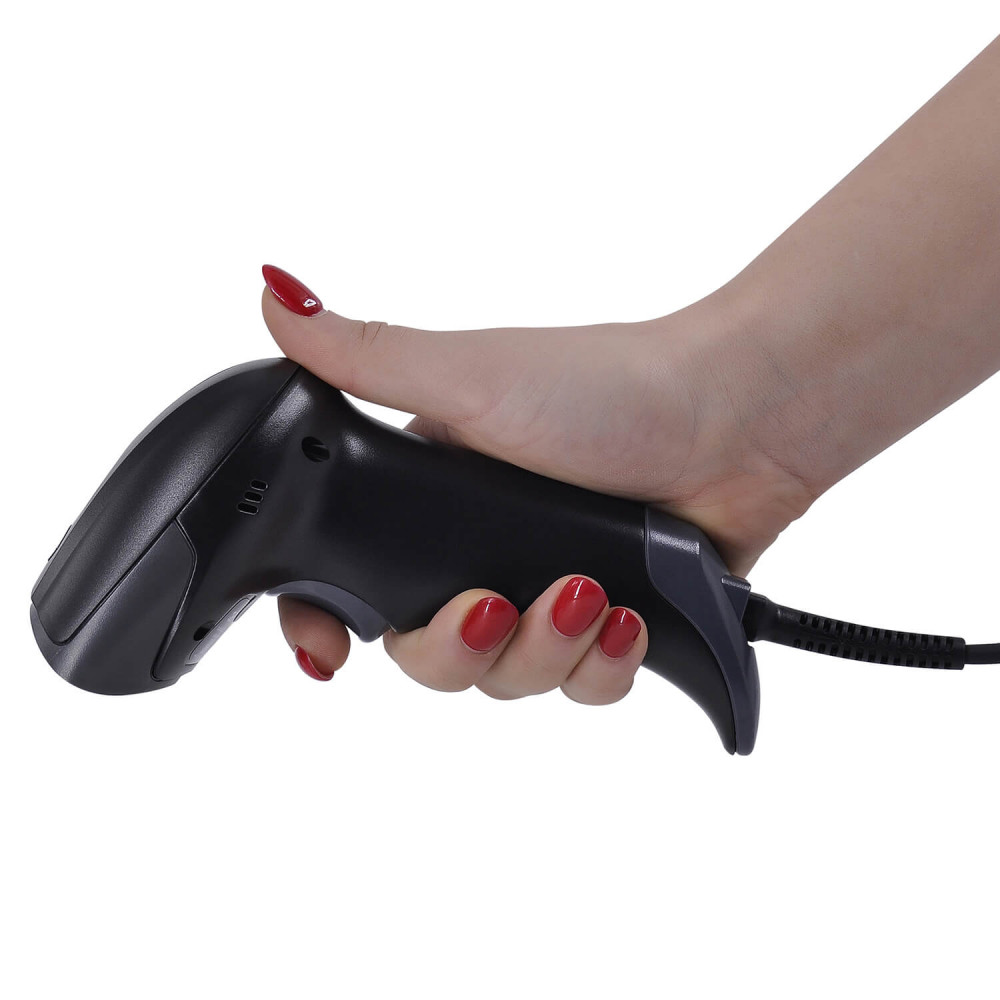

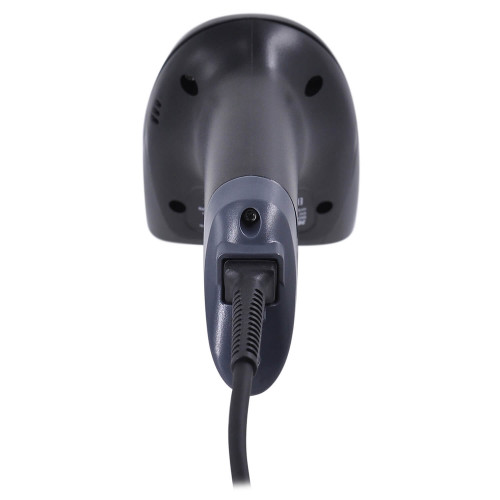

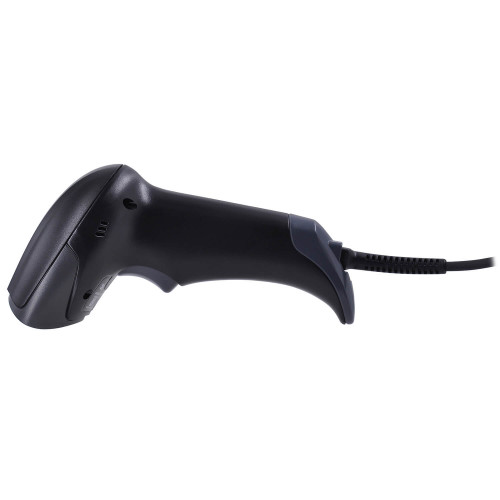

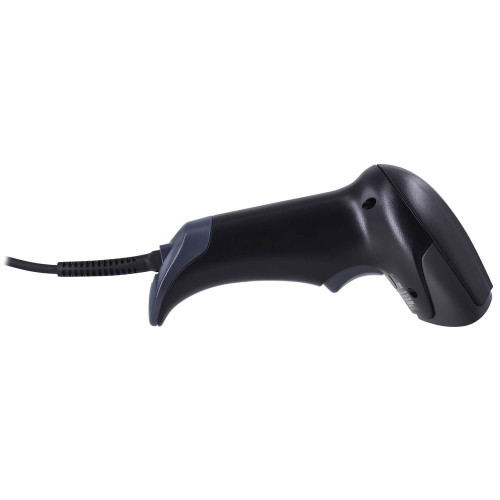

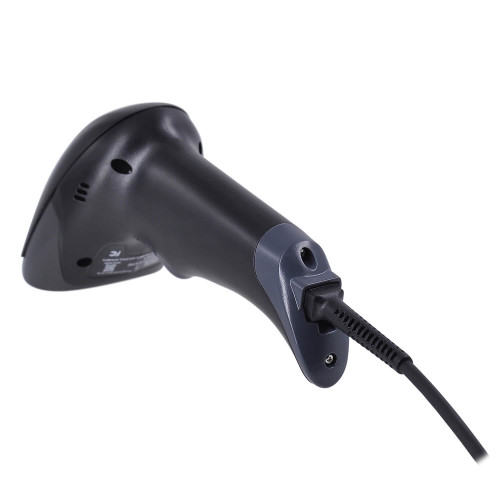

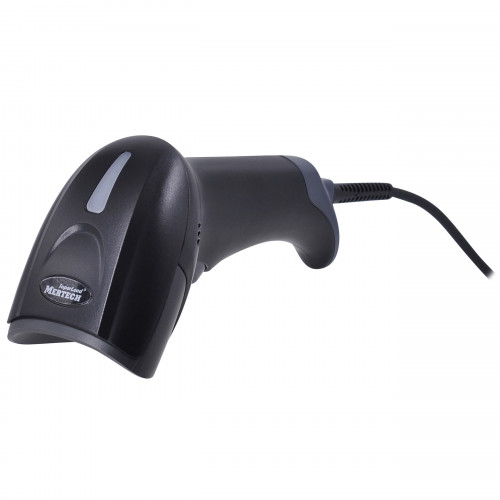

The MERTECH 2310 is a hand—held wired scanner. The device recognizes all known 2D and 1D barcodes. The labels are scanned using SUPERLEAD technology.
Technical specifications
The device body is made of impact-resistant plastic and polycarbonate. Plastic color: black. Reader Size: 170*95*70 mm. The device weighs 125 grams. Repeated falls from a height of 2 m do not affect the operation of the electronic filling. Enclosure protection level from external influences: IP54.
Main Features of MERTECH 2310:
- Label recognition distance: 57 cm.
- Scanning at a speed of 100 scans/sec.
- A scanning module with a resolution of 1280*1080 pixels.
- Coverage angle: 38.5°x32.5°.
- Trigger resource: 5 million triggers.
- Sensitivity: 65° tilt, 360° rotation, 60° deviation.
- Minimum reading resolution: 3.9 MIL.
The connection to the online sales register, smart terminal or computer is carried out via USB-HID. USB-COM and RS232 interfaces are also available optionally. The device connects to the online sales registers of Atol Sigma, Evotor, Shtrik-M, Mercury and other well-known brands.
Advantages of the model
The wired scanner was created specifically for the Honest SIGN system. The device complies with the requirements of USAIS and FGIS. Compliance with the stated requirements is confirmed by the test results.
Advantages of the MERTECH 2310 reader:
- Red LED backlight for 617K barcodes.
- Barcode recognition with 20% contrast.
- Scan damaged labels.
- Recognition of data from complex surfaces.
- Automatic activation when applying a barcode.
- Temperature for reading: from 0 °C to 50 °C.
- Warranty period: 3 years.
You can buy a wired 2D barcode scanner with delivery in Russia. When ordering on the MERTECH website, low prices from the manufacturer apply. You can arrange delivery to the company's address or pick up the goods at the pick-up point.
To buy 2D scanners, send a request or call by phone. The manager will answer you and help you choose the equipment for your business, arrange payment and delivery of the purchase.
| Gross weight | 0.277 kg |
|---|---|
| Masterbox dimensions | 53x42x45 cm |
| Masterbox weight, kg | 15.104 kg |
| Package dimensions (1 pc.) | 21.5x7.5x10 cm |
| Scanning speed | 100 scans/sec |
| Type of scanning module | 2D image |
| Scanner type | Manual |
|---|---|
| Scanning element | 2D image |
| Connection type | Wired |
| Scanner resolution | 1280(H)x1080(V)Px |
| Scanning coverage angle | 38,5º(h)x32,5º(v) |
| Barcode Sensitivity | Tilt ± 65° / 360° Rotation / Deviation ± 60 ° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 570 mm |
| Number of triggers without failures | 5 million |
| Sound and visual indication | Yes |
|---|---|
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| EGAIS support | Yes |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | Red, 650nm LED |
|---|
| 5 MIL | 0-200 mm |
|---|---|
| 13 MIL | 0-280 mm |
| Minimum scanning resolution | 3 MIL |
| Guarantee | 3 years old |
|---|---|
| Resistance to external influences | IP54 |
| Analogues of manufacturers | Proton, Cipherlab, Globalpos, Urovo, Idzor, Moyros, Poscenter, Cino |
| Storage temperature | -40°C ~ +70°C |
| Permissible humidity | 0% ~ 95% |
| Application areas | For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ |
| Operating temperature | -20°C ~ +40°C |
| Drop test | It can withstand 50 falls from a height of 2 m on a concrete surface or multiple falls from a height of 1.5 m. |
| Interface | USB-HID; USB-COM emulation; RS232 - optional |
|---|---|
| Interfaces | USB-HID; USB-COM - emulation; RS232 - optional |
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 170*95*70 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 125 g |
| Interface cable | USB |
|---|---|
| Quantity in masterbox, pcs | 50 pcs |
| Gross weight, g | 300 |
| Box dimensions, mm | 180*75*105 |

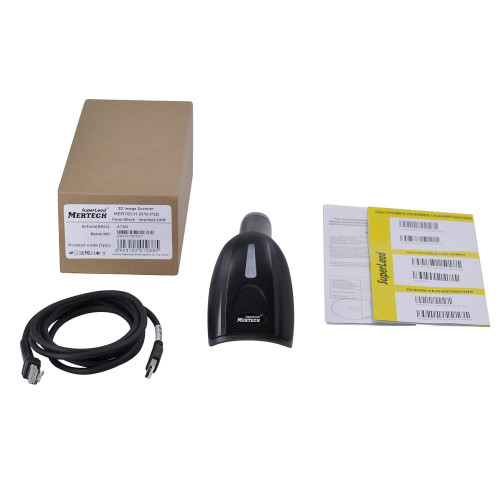

| Equipment | Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging |
-
